SkyTrak Models

• 6000lb. (2722 kg) max lift capacity and 36′ 1″ (11 m) max lift height.
• Easy accessibility to componentry for maintenance and service.
• Roomy comfortable cab with suspension seat and excellent all-around visibility.
• 3-speed power shift transmission for easy shifting a TRAK-Attach system for fast attachment changes.

Engine:
  • Cummins 4B3.9 Diesel 76 HP @ 2500 RPM
  • Cummins 4BT3.9 Turbo Diesel 100 HP @ 2500 RPM

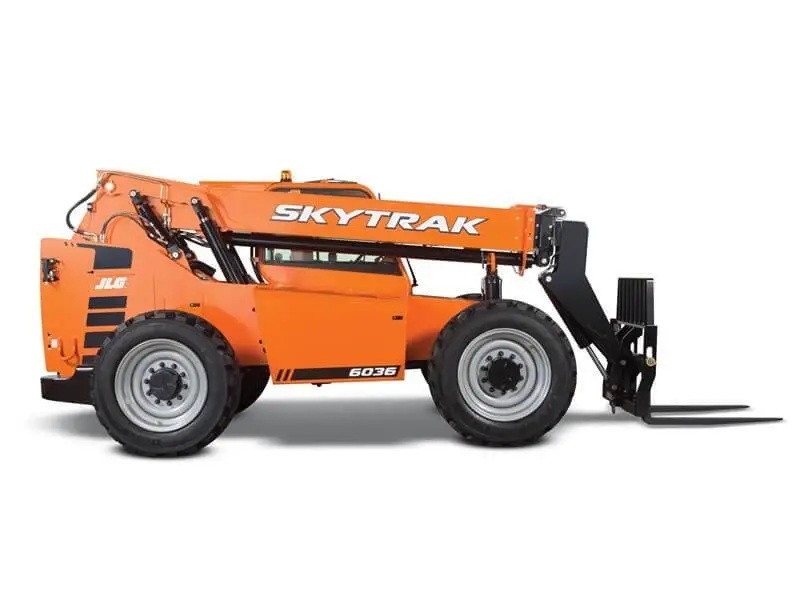

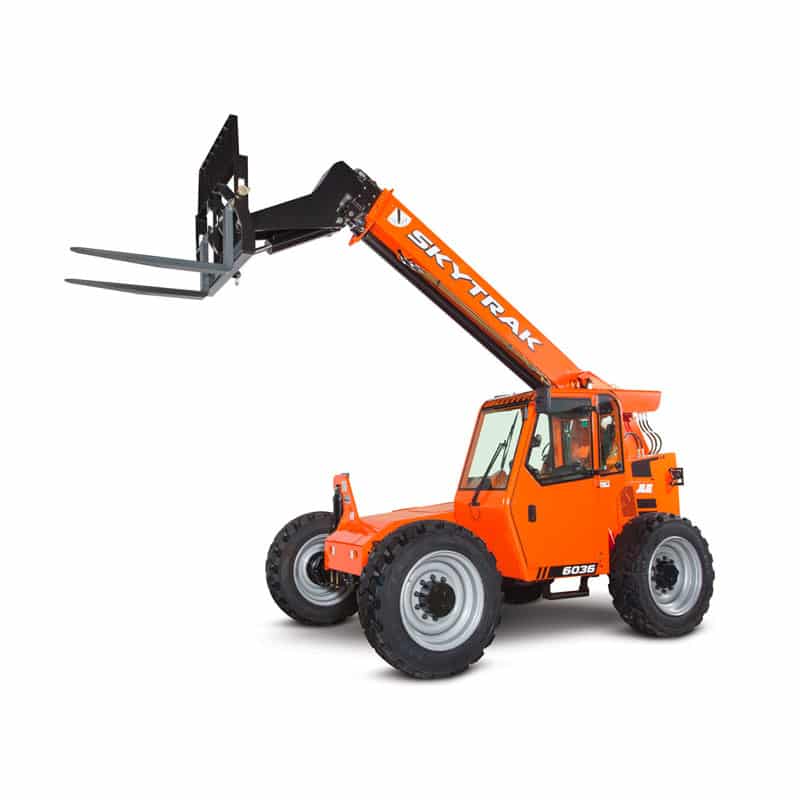

SkyTrak Model 6036



6036 Chart
Transmission: Powershift, 3-speed forward and reverse.
Axels & Brakes: Full Time planetary 4-wheel drive with enclosed wet disc brakes

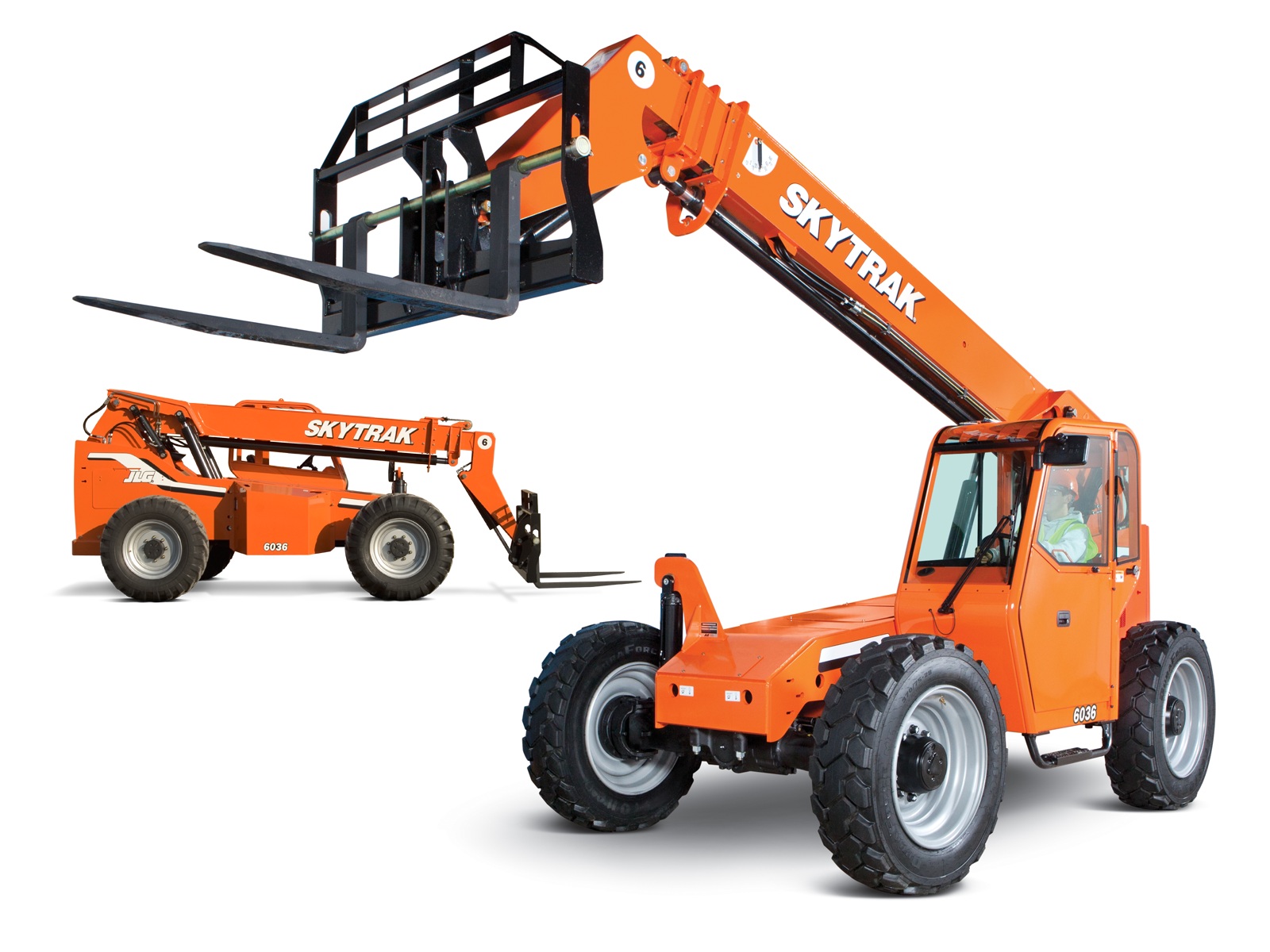

Boom: Telescopic 3-stage welded box section construction using high strength alloy steel Replaceable high density wear pads to limit friction.
Max. Lift Capacity: 6,000 lbs. (2722 kg)
Lift Height: 36′ 1″ (11 m)
Max. Reach below grade: 3′ 3″ (990 mm)
Operating Weight: 19010 lbs. (8623 kg)
Hydraulic Oil Capacity: 38 gal. (144 liters)
Fuel Tank Capacity: 24 gal. (91 liters)
Standard Tires: 13.0 x 24, 10 ply
Frame Tilt to Left or Right: 120˚
Length less forks: 211″ (5359 mm)
Width: 97″ (2464 mm)
Height: 100″ (2540 mm)
Wheelbase: 113″ (2870 mm)
Ground Clearance: 16.5″ (419 mm)
Tread: 82″ (2038 mm)
Turning Clearance Radius: 13′ 9″ (4,2 m)
Max. Reach @ Max.
Height to 24″ load center:		 22′ 5″ (6,8 m)
Standard Equipment:
  • TRAK-Attach system
  • Automatic load leveling system
  • Frame leveling
  • Load holding valves on frame level, attachment tilt, extend and lift cylinders
  • Oscillating rear axle, 2- wheel, 4-wheel and crab steering
  • Hydraulically actuated wet disc brakes
  • Emergency brake with transmission disconnect
  • FOPS operator cab
  • Deluxe suspension seat with seat belt
  • Joystick controls
  • Horn and backup alarm
  • Gauges and warning lights
  • 12 V electrical system
  • Lockable doors and covers
  • Rear view mirrors
Options:
  • Auxiliary hydraulics
  • Enclosed all weather cab
  • Engine block heater
  • Light package
Attachments:
  • Standard Carriages: 48″ (1,22 m), 60″ (1,52m) and 72″ (1,83m)
  • ± lO° Side Tilt Carriages: 48″ (1,22 m), 60″ (1,52 m) and 72″ (1,83 m)
  • ± 45° Swing Carriages: 52″ (1,32 m) and 72″ (1,83 m), 48″ (1,22m)
  • Pallet Forks: 60″ (1.52 m)
  • Lumber Forks: 48″ (1,22m)
  • Block Forks: 5′ (1.52m)
  • Mast Extension: 9′ (2,7m)
  • Truss Boom
  • Utility Bucket & Concrete Bucket
  • Wallboard Handler
  • Hydraulic Earth Auger
