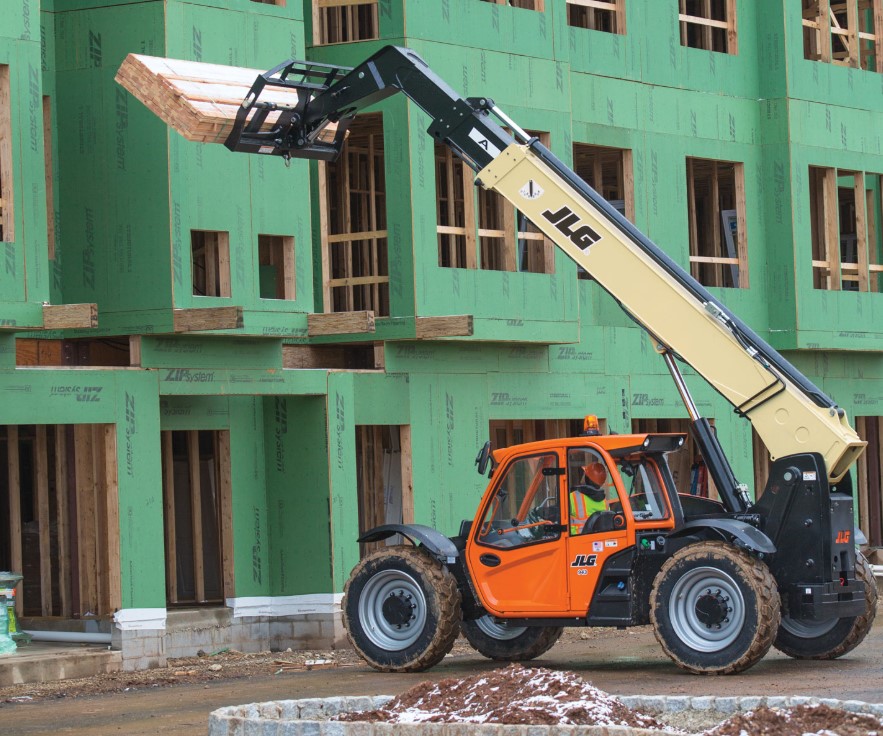

JLG Telehandler 943 SPECS & BROCHURE
With a rated capacity of 9,000 lb. (4082.33 kg) and a maximum reach of 30 ft 5 in, the JLG 943 combines versatility and comfort. Enjoy a wide range of attachment options and better visibility along with a precision gravity-lowering system.
Add reverse camera and sensing systems and Stabil-Trak rear axle stabilization for ultimate awareness and control.
We'll help find & delivera JLG Telehandler 943 to you
Contact UsNeed replacement parts for your JLG Telehandler 943?
Shop our replacement parts
JLG Telehandler 943 key specs
Maximum Lift Capacity
9000 lb. / 4082.33 kg
Maximum Lift Height
43 ft / 13.11 m
Maximum Reach
30 ft 5 in. / 9.27 m
JLG Telehandler 943Key Features
- Enhanced operator comfort: spacious cab, intuitive single joystick & integrated arm rest
- Maximum serviceability: extended service intervals, easy-to-access parts & durable components for less overall maintenance
- Greater operator confidence: better visibility, Stabil-Trak rear axle stabilization, precision gravity lowering system, optional reverse sensing system & reversing camera
- Optional 74 hp engine doesn't require Diesel Exhaust Fluid (DEF) & meets Tier 4 Final regulations
- Increased versatility: wide range of attachment options
Drawbar Pull | 22751 lb. / 10319.68 kg |
Frame Leveling | 10 Degrees |
Lift Capacity at Full Height | 7000 lb. / 3175.15 kg |
Lift Capacity at Max Reach | 1200 lb. / 544.31 kg |
Load Center | 2 ft / 0.61 m |
Maximum Lift Capacity | 9000 lb. / 4082.33 kg |
Maximum Lift Height | 43 ft / 13.11 m |
Maximum Reach | 30 ft 5 in. / 9.27 m |
Outriggers or Stabilizers | No |
Outside Turning Radius | 12 ft / 3.66 m |
Speed - Maximum Lift | 13 sec. |
Speed - Maximum Lower | 9 sec. |
Speed - Maximum Telescope In | 13 sec. |
Speed - Maximum Telescope Out | 15 sec. |
Speed - Maximum Travel | 19 mph / 30.58 km/h |
Ground Clearance | 1 ft 5 in. / 0.43 m |
Machine Height | 8 ft 2 in. / 2.49 m |
Machine Length | 19 ft 9 in. / 6.02 m |
Machine Width | 8 ft 1 in. / 2.46 m |
Tire Size | 370/75-28 |
Wheelbase | 11 ft 3 in. / 3.43 m |
Capacity - Fuel Tank | 38.3 gal. / 144.98 L |
Engine Horsepower | 110 hp / 82.06 kW |
Engine Manufacturer | Cummins |
Engine Model | QSF3.8L Tier 4 Final |
Maximum Engine RPM | 1500 rpm |
Axle-Front | High Bias, Limited Slip |
Axle-Rear | Planetary |
Function Pump Type | Load Sensing Piston |
Operating Vehicle Weight | 24912 lb. / 11299.89 kg |
Service Brake Type | Wet Multi-Disc |
Transmission - Nr Forward Gears Standard | 4 |
Transmission - Nr Reverse Gears | 3 |
Transmission Type | Powershift |
JLG Telehandler 943 Spec Sheet
