SKYTRAK TELEHANDLER 6034 SPECS & BROCHURE

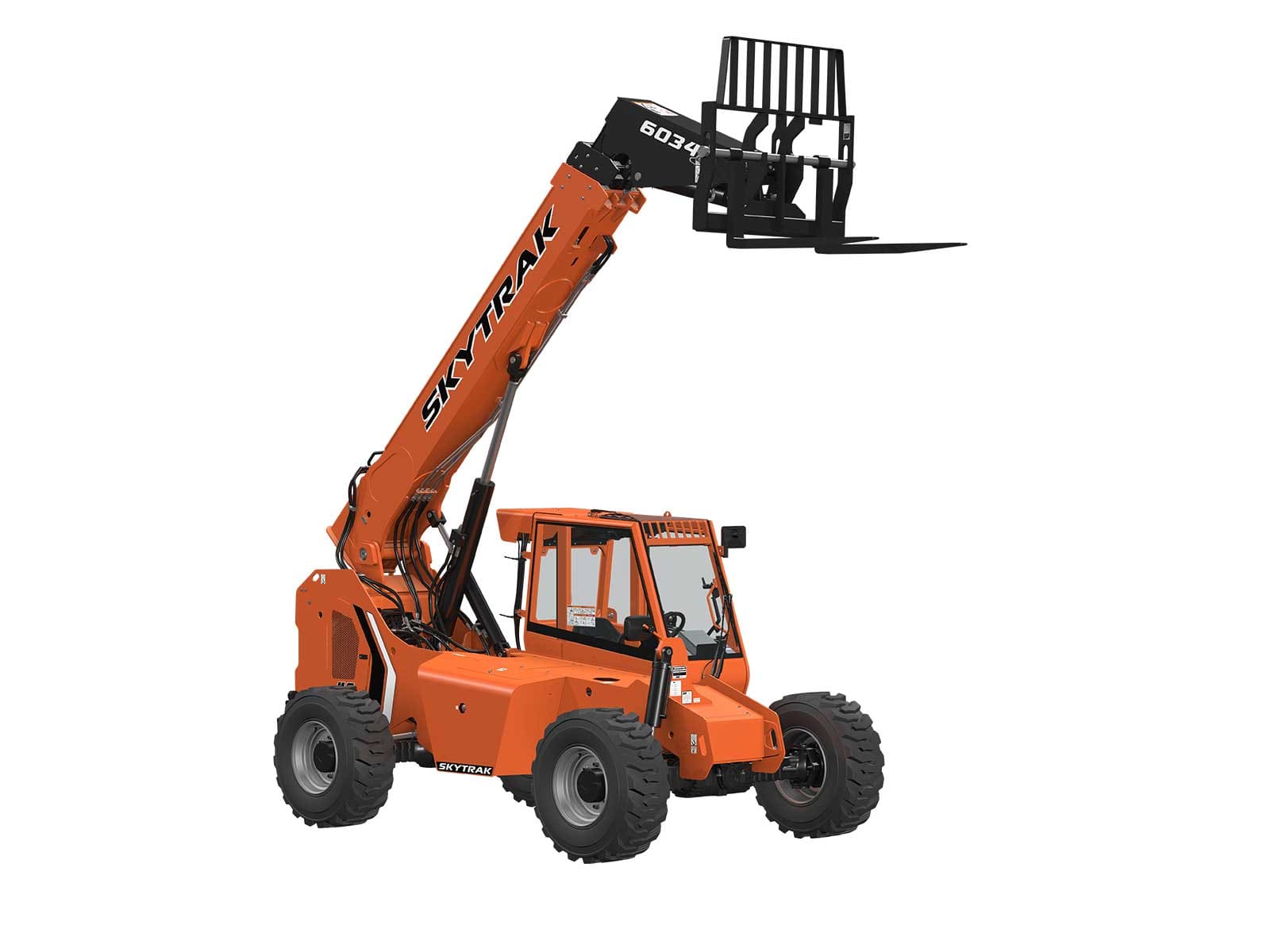

The SkyTrak telehandler 6034 has a maximum lift capacity of 6,000 lb. (2721.55 kg) and a maximum lift height of 34 ft 5 inches. With a maximum reach of 23 ft 2 inches, the 6034 telehandler from SkyTrak boasts a lightweight design, enabling convenient truck and trailer transport.

The SkyTrak 6034 telehandler has a hydrostatic transmission for ease of operation and features an advanced control system for improved diagnostics. Get greater multifunction capability with the 6034's electric over hydraulic joystick. Add a range of accessories including a multi-reverse camera system and a reverse sensing system.

SkyTrak telehandler 6034 specs and information

We'll help find & delivera SKYTRAK TELEHANDLER 6034 to you

Need replacement parts for your SKYTRAK TELEHANDLER 6034?
Shop our replacement parts

SKYTRAK TELEHANDLER 6034 key specs

Maximum Lift Capacity

6.000 lb. / 2721.55 kg

Maximum Lift Height

34 ft 5 in. / 10.49 m

Maximum Reach

23 ft 2 in. / 7.06 m

Request an order

See all specs

SKYTRAK TELEHANDLER 6034Key Features

Hydrostatic transmission for ease of operation.
Advanced control system allows for more options and provides improved diagnostics.
Lightweight design allows for transport with a truck and trailer.
Electric over hydraulic joystick for greater multifunction capability.

Drawbar Pull	12863 lb. / 5834.56 kg
Frame Leveling	10 Degrees
Lift Capacity at Full Height	6000 lb. / 2721.55 kg
Lift Capacity at Max Reach	1000 lb. / 453.59 kg
Load Center	2 ft / 0.61 m
Maximum Lift Capacity	6000 lb. / 2721.55 kg
Maximum Lift Height	34 ft 5 in. / 10.49 m
Maximum Reach	23 ft 2 in. / 7.06 m
Outriggers or Stabilizers	No
Outside Turning Radius	11 ft 11 in. / 3.63 m
Speed - Maximum Lift	11 sec.
Speed - Maximum Lower	9 sec.
Speed - Maximum Telescope In	10 sec.
Speed - Maximum Telescope Out	10 sec.
Speed - Maximum Travel	15 mph / 24.14 km/h

Ground Clearance	1 ft 3 in. / 0.38 m
Machine Height	8 ft 2 in. / 2.48 m
Machine Length	17 ft 6 in. / 5.32 m
Machine Width	7 ft 11 in. / 2.41 m
Tire Size	15-19.5
Wheelbase	9 ft 2 in. / 2.79 m

Capacity - Fuel Tank	28 gal. / 105.99 L
Engine Horsepower	74 hp / 55.20 kW
Engine Manufacturer	Deutz
Engine Model	TCD2.9 L4

Axle-Front	High Bias, Limited Slip
Axle-Rear	Oscillating
Operating Vehicle Weight	14500 lb. / 6577.09 kg
Function Pump Type	Gear
Transmission - Nr Forward Gears Standard	1
Transmission - Nr Reverse Gears	1
Transmission Type	Hydrostatic
